Mutation-Based Fuzzing¶

Most randomly generated inputs are syntactically invalid and thus are quickly rejected by the processing program. To exercise functionality beyond input processing, we must increase chances to obtain valid inputs. One such way is so-called mutational fuzzing – that is, introducing small changes to existing inputs that may still keep the input valid, yet exercise new behavior. We show how to create such mutations, and how to guide them towards yet uncovered code, applying central concepts from the popular AFL fuzzer.

from bookutils import YouTubeVideo
YouTubeVideo('5ROhc_42jQU')

Prerequisites

You should know how basic fuzzing works; for instance, from the "Fuzzing" chapter.
You should understand the basics of obtaining coverage.

Synopsis¶

To use the code provided in this chapter, write

>>> from fuzzingbook.MutationFuzzer import <identifier>

and then make use of the following features.

This chapter introduces a MutationFuzzer class that takes a list of seed inputs which are then mutated:

>>> seed_input = "http://www.google.com/search?q=fuzzing"
>>> mutation_fuzzer = MutationFuzzer(seed=[seed_input])
>>> [mutation_fuzzer.fuzz() for i in range(10)]
['http://www.google.com/search?q=fuzzing',
 'http://wwBw.google.com/searh?q=fuzzing',
 'http8//wswgoRogle.am/secch?qU=fuzzing',
 'ittp://www.googLe.com/serch?q=fuzzingZ',
 'httP://wgw.google.com/seasch?Q=fuxzanmgY',
 'http://www.google.cxcom/search?q=fuzzing',
 'hFttp://ww.-g\x7fog+le.com/s%arch?q=f-uzz#ing',
 'http://www\x0egoogle.com/seaNrch?q=fuZzing',
 'http//www.Ygooge.comsarch?q=fuz~Ijg',
 'http8//ww.goog5le.com/sezarc?q=fuzzing']

The MutationCoverageFuzzer maintains a population of inputs, which are then evolved in order to maximize coverage.

>>> mutation_fuzzer = MutationCoverageFuzzer(seed=[seed_input])
>>> mutation_fuzzer.runs(http_runner, trials=10000)
>>> mutation_fuzzer.population[:5]
['http://www.google.com/search?q=fuzzing',
 'http://wwv.oogle>co/search7Eq=fuzing',
 'http://wwv\x0eOogleb>co/seakh7Eq\x1d;fuzing',
 'http://wwv\x0eoglebkooqeakh7Eq\x1d;fuzing',
 'http://wwv\x0eoglekol=oekh7Eq\x1d\x1bf~ing']

Fuzzing with Mutations¶

On November 2013, the first version of American Fuzzy Lop (AFL) was released. Since then, AFL has become one of the most successful fuzzing tools and comes in many flavors, e.g., AFLFast, AFLGo, and AFLSmart (which are discussed in this book). AFL has made fuzzing a popular choice for automated vulnerability detection. It was the first to demonstrate that vulnerabilities can be detected automatically at a large scale in many security-critical, real-world applications.

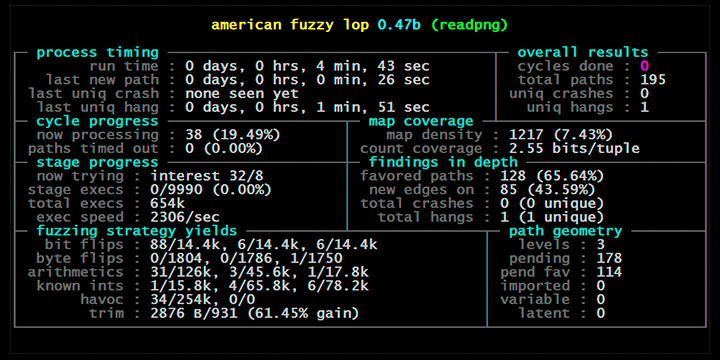

American Fuzzy Lop Command Line User Interface

Figure 1. American Fuzzy Lop Command Line User Interface

In this chapter, we are going to introduce the basics of mutational fuzz testing; the next chapter will then further show how to direct fuzzing towards specific code goals.

Fuzzing a URL Parser¶

Many programs expect their inputs to come in a very specific format before they would actually process them. As an example, think of a program that accepts a URL (a Web address). The URL has to be in a valid format (i.e., the URL format) such that the program can deal with it. When fuzzing with random inputs, what are our chances to actually produce a valid URL?

To get deeper into the problem, let us explore what URLs are made of. A URL consists of a number of elements:

scheme://netloc/path?query#fragment

where

scheme is the protocol to be used, including http, https, ftp, file...
netloc is the name of the host to connect to, such as www.google.com
path is the path on that very host, such as search
query is a list of key/value pairs, such as q=fuzzing
fragment is a marker for a location in the retrieved document, such as #result

In Python, we can use the urlparse() function to parse and decompose a URL into its parts.

import bookutils.setup

from typing import Tuple, List, Callable, Set, Any

from urllib.parse import urlparse

urlparse("http://www.google.com/search?q=fuzzing")

We see how the result encodes the individual parts of the URL in different attributes.

Let us now assume we have a program that takes a URL as input. To simplify things, we won't let it do very much; we simply have it check the passed URL for validity. If the URL is valid, it returns True; otherwise, it raises an exception.

def http_program(url: str) -> bool:
    supported_schemes = ["http", "https"]
    result = urlparse(url)
    if result.scheme not in supported_schemes:
        raise ValueError("Scheme must be one of " +
                         repr(supported_schemes))
    if result.netloc == '':
        raise ValueError("Host must be non-empty")

    # Do something with the URL
    return True

Let us now go and fuzz http_program(). To fuzz, we use the full range of printable ASCII characters, such that :, /, and lowercase letters are included.

from Fuzzer import fuzzer

fuzzer(char_start=32, char_range=96)

Let's try to fuzz with 1000 random inputs and see whether we have some success.

for i in range(1000):
    try:
        url = fuzzer()
        result = http_program(url)
        print("Success!")
    except ValueError:
        pass

What are the chances of actually getting a valid URL? We need our string to start with "http://" or "https://". Let's take the "http://" case first. These are seven very specific characters we need to start with. The chance of producing these seven characters randomly (with a character range of 96 different characters) is $1 : 96^7$, or

96 ** 7

The odds of producing a "https://" prefix are even worse, at $1 : 96^8$:

96 ** 8

which gives us a total chance of

likelihood = 1 / (96 ** 7) + 1 / (96 ** 8)
likelihood

And this is the number of runs (on average) we'd need to produce a valid URL scheme:

1 / likelihood

Let's measure how long one run of http_program() takes:

from Timer import Timer

trials = 1000
with Timer() as t:
    for i in range(trials):
        try:
            url = fuzzer()
            result = http_program(url)
            print("Success!")
        except ValueError:
            pass

duration_per_run_in_seconds = t.elapsed_time() / trials
duration_per_run_in_seconds

That's pretty fast, isn't it? Unfortunately, we have a lot of runs to cover.

seconds_until_success = duration_per_run_in_seconds * (1 / likelihood)
seconds_until_success

which translates into

hours_until_success = seconds_until_success / 3600
days_until_success = hours_until_success / 24
years_until_success = days_until_success / 365.25
years_until_success

Even if we parallelize things a lot, we're still in for months to years of waiting. And that's for getting one successful run that will get deeper into http_program().

What basic fuzzing will do well is to test urlparse(), and if there is an error in this parsing function, it has good chances of uncovering it. But as long as we cannot produce a valid input, we are out of luck in reaching any deeper functionality.

Mutating Inputs¶

The alternative to generating random strings from scratch is to start with a given valid input, and then to subsequently mutate it. A mutation in this context is a simple string manipulation - say, inserting a (random) character, deleting a character, or flipping a bit in a character representation. This is called mutational fuzzing – in contrast to the generational fuzzing techniques discussed earlier.

Here are some mutations to get you started:

import random

def delete_random_character(s: str) -> str:
    """Returns s with a random character deleted"""
    if s == "":
        return s

    pos = random.randint(0, len(s) - 1)
    # print("Deleting", repr(s[pos]), "at", pos)
    return s[:pos] + s[pos + 1:]

seed_input = "A quick brown fox"
for i in range(10):
    x = delete_random_character(seed_input)
    print(repr(x))

def insert_random_character(s: str) -> str:
    """Returns s with a random character inserted"""
    pos = random.randint(0, len(s))
    random_character = chr(random.randrange(32, 127))
    # print("Inserting", repr(random_character), "at", pos)
    return s[:pos] + random_character + s[pos:]

for i in range(10):
    print(repr(insert_random_character(seed_input)))

def flip_random_character(s):
    """Returns s with a random bit flipped in a random position"""
    if s == "":
        return s

    pos = random.randint(0, len(s) - 1)
    c = s[pos]
    bit = 1 << random.randint(0, 6)
    new_c = chr(ord(c) ^ bit)
    # print("Flipping", bit, "in", repr(c) + ", giving", repr(new_c))
    return s[:pos] + new_c + s[pos + 1:]

for i in range(10):
    print(repr(flip_random_character(seed_input)))

Let us now create a random mutator that randomly chooses which mutation to apply:

def mutate(s: str) -> str:
    """Return s with a random mutation applied"""
    mutators = [
        delete_random_character,
        insert_random_character,
        flip_random_character
    ]
    mutator = random.choice(mutators)
    # print(mutator)
    return mutator(s)

for i in range(10):
    print(repr(mutate("A quick brown fox")))

The idea is now that if we have some valid input(s) to begin with, we may create more input candidates by applying one of the above mutations. To see how this works, let's get back to URLs.

Mutating URLs¶

Let us now get back to our URL parsing problem. Let us create a function is_valid_url() that checks whether http_program() accepts the input.

def is_valid_url(url: str) -> bool:
    try:
        result = http_program(url)
        return True
    except ValueError:
        return False

assert is_valid_url("http://www.google.com/search?q=fuzzing")
assert not is_valid_url("xyzzy")

Let us now apply the mutate() function on a given URL and see how many valid inputs we obtain.

seed_input = "http://www.google.com/search?q=fuzzing"
valid_inputs = set()
trials = 20

for i in range(trials):
    inp = mutate(seed_input)
    if is_valid_url(inp):
        valid_inputs.add(inp)

We can now observe that by mutating the original input, we get a high proportion of valid inputs:

len(valid_inputs) / trials

What are the odds of also producing a https: prefix by mutating a http: sample seed input? We have to insert ($1 : 3$) the right character 's' ($1 : 96$) into the correct position ($1 : l$), where $l$ is the length of our seed input. This means that on average, we need this many runs:

trials = 3 * 96 * len(seed_input)
trials

We can actually afford this. Let's try:

from Timer import Timer

trials = 0
with Timer() as t:
    while True:
        trials += 1
        inp = mutate(seed_input)
        if inp.startswith("https://"):
            print(
                "Success after",
                trials,
                "trials in",
                t.elapsed_time(),
                "seconds")
            break

Of course, if we wanted to get, say, an "ftp://" prefix, we would need more mutations and more runs – most important, though, we would need to apply multiple mutations.

Multiple Mutations¶

So far, we have only applied one single mutation on a sample string. However, we can also apply multiple mutations, further changing it. What happens, for instance, if we apply, say, 20 mutations on our sample string?

seed_input = "http://www.google.com/search?q=fuzzing"
mutations = 50

inp = seed_input
for i in range(mutations):
    if i % 5 == 0:
        print(i, "mutations:", repr(inp))
    inp = mutate(inp)

As you see, the original seed input is hardly recognizable anymore. By mutating the input again and again, we get a higher variety in the input.

To implement such multiple mutations in a single package, let us introduce a MutationFuzzer class. It takes a seed (a list of strings) as well as a minimum and a maximum number of mutations.

from Fuzzer import Fuzzer

class MutationFuzzer(Fuzzer):
    """Base class for mutational fuzzing"""

    def __init__(self, seed: List[str],
                 min_mutations: int = 2,
                 max_mutations: int = 10) -> None:
        """Constructor.
        `seed` - a list of (input) strings to mutate.
        `min_mutations` - the minimum number of mutations to apply.
        `max_mutations` - the maximum number of mutations to apply.
        """
        self.seed = seed
        self.min_mutations = min_mutations
        self.max_mutations = max_mutations
        self.reset()

    def reset(self) -> None:
        """Set population to initial seed.
        To be overloaded in subclasses."""
        self.population = self.seed
        self.seed_index = 0

In the following, let us develop MutationFuzzer further by adding more methods to it. The Python language requires us to define an entire class with all methods as a single, continuous unit; however, we would like to introduce one method after another. To avoid this problem, we use a special hack: Whenever we want to introduce a new method to some class C, we use the construct

class C(C):
    def new_method(self, args):
        pass

This seems to define C as a subclass of itself, which would make no sense – but actually, it introduces a new C class as a subclass of the old C class, and then shadowing the old C definition. What this gets us is a C class with new_method() as a method, which is just what we want. (C objects defined earlier will retain the earlier C definition, though, and thus must be rebuilt.)

Using this hack, we can now add a mutate() method that actually invokes the above mutate() function. Having mutate() as a method is useful when we want to extend a MutationFuzzer later.

class MutationFuzzer(MutationFuzzer):
    def mutate(self, inp: str) -> str:
        return mutate(inp)

Let's get back to our strategy, maximizing diversity in coverage in our population. First, let us create a method create_candidate(), which randomly picks some input from our current population (self.population), and then applies between min_mutations and max_mutations mutation steps, returning the final result:

class MutationFuzzer(MutationFuzzer):
    def create_candidate(self) -> str:
        """Create a new candidate by mutating a population member"""
        candidate = random.choice(self.population)
        trials = random.randint(self.min_mutations, self.max_mutations)
        for i in range(trials):
            candidate = self.mutate(candidate)
        return candidate

The fuzz() method is set to first pick the seeds; when these are gone, we mutate:

class MutationFuzzer(MutationFuzzer):
    def fuzz(self) -> str:
        if self.seed_index < len(self.seed):
            # Still seeding
            self.inp = self.seed[self.seed_index]
            self.seed_index += 1
        else:
            # Mutating
            self.inp = self.create_candidate()
        return self.inp

Here is the fuzz() method in action. With every new invocation of fuzz(), we get another variant with multiple mutations applied.

seed_input = "http://www.google.com/search?q=fuzzing"
mutation_fuzzer = MutationFuzzer(seed=[seed_input])
mutation_fuzzer.fuzz()

mutation_fuzzer.fuzz()

mutation_fuzzer.fuzz()

The higher variety in inputs, though, increases the risk of having an invalid input. The key to success lies in the idea of guiding these mutations – that is, keeping those that are especially valuable.

Guiding by Coverage¶

To cover as much functionality as possible, one can rely on either specified or implemented functionality, as discussed in the "Coverage" chapter. For now, we will not assume that there is a specification of program behavior (although it definitely would be good to have one!). We will assume, though, that the program to be tested exists – and that we can leverage its structure to guide test generation.

Since testing always executes the program at hand, one can always gather information about its execution – the least is the information needed to decide whether a test passes or fails. Since coverage is frequently measured as well to determine test quality, let us also assume we can retrieve coverage of a test run. The question is then: How can we leverage coverage to guide test generation?

One particularly successful idea is implemented in the popular fuzzer named American fuzzy lop, or AFL for short. Just like our examples above, AFL evolves test cases that have been successful – but for AFL, "success" means finding a new path through the program execution. This way, AFL can keep on mutating inputs that so far have found new paths; and if an input finds another path, it will be retained as well.

Let us build such a strategy. We start with introducing a Runner class that captures the coverage for a given function. First, a FunctionRunner class:

from Fuzzer import Runner

class FunctionRunner(Runner):
    def __init__(self, function: Callable) -> None:
        """Initialize.  `function` is a function to be executed"""
        self.function = function

    def run_function(self, inp: str) -> Any:
        return self.function(inp)

    def run(self, inp: str) -> Tuple[Any, str]:
        try:
            result = self.run_function(inp)
            outcome = self.PASS
        except Exception:
            result = None
            outcome = self.FAIL

        return result, outcome

http_runner = FunctionRunner(http_program)
http_runner.run("https://foo.bar/")

We can now extend the FunctionRunner class such that it also measures coverage. After invoking run(), the coverage() method returns the coverage achieved in the last run.

from Coverage import Coverage, population_coverage, Location

class FunctionCoverageRunner(FunctionRunner):
    def run_function(self, inp: str) -> Any:
        with Coverage() as cov:
            try:
                result = super().run_function(inp)
            except Exception as exc:
                self._coverage = cov.coverage()
                raise exc

        self._coverage = cov.coverage()
        return result

    def coverage(self) -> Set[Location]:
        return self._coverage

http_runner = FunctionCoverageRunner(http_program)
http_runner.run("https://foo.bar/")

Here are the first five locations covered:

print(list(http_runner.coverage())[:5])

Now for the main class. We maintain the population and a set of coverages already achieved (coverages_seen). The fuzz() helper function takes an input and runs the given function() on it. If its coverage is new (i.e. not in coverages_seen), the input is added to population and the coverage to coverages_seen.

class MutationCoverageFuzzer(MutationFuzzer):
    """Fuzz with mutated inputs based on coverage"""

    def reset(self) -> None:
        super().reset()
        self.coverages_seen: Set[frozenset] = set()
        # Now empty; we fill this with seed in the first fuzz runs
        self.population = []

    def run(self, runner: FunctionCoverageRunner) -> Any:
        """Run function(inp) while tracking coverage.
           If we reach new coverage,
           add inp to population and its coverage to population_coverage
        """
        result, outcome = super().run(runner)
        new_coverage = frozenset(runner.coverage())
        if outcome == Runner.PASS and new_coverage not in self.coverages_seen:
            # We have new coverage
            self.population.append(self.inp)
            self.coverages_seen.add(new_coverage)

        return result

Let us now put this to use:

seed_input = "http://www.google.com/search?q=fuzzing"
mutation_fuzzer = MutationCoverageFuzzer(seed=[seed_input])
mutation_fuzzer.runs(http_runner, trials=10000)
mutation_fuzzer.population

Success! In our population, each and every input now is valid and has a different coverage, coming from various combinations of schemes, paths, queries, and fragments.

all_coverage, cumulative_coverage = population_coverage(
    mutation_fuzzer.population, http_program)

import matplotlib.pyplot as plt

plt.plot(cumulative_coverage)

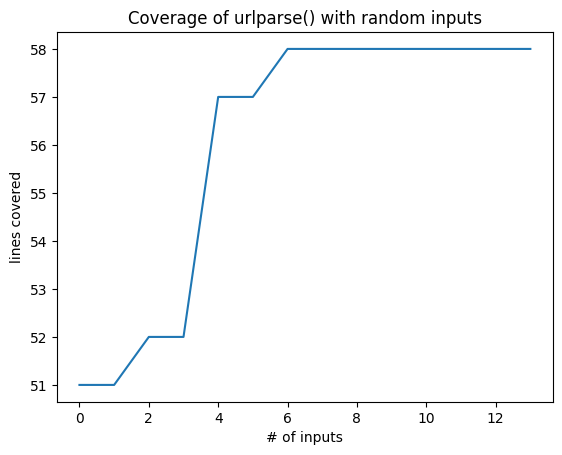

plt.title('Coverage of urlparse() with random inputs')
plt.xlabel('# of inputs')
plt.ylabel('lines covered');

The nice thing about this strategy is that, applied to larger programs, it will happily explore one path after the other – covering functionality after functionality. All that is needed is a means to capture the coverage.

Lessons Learned¶

Randomly generated inputs are frequently invalid – and thus exercise mostly input processing functionality.
Mutations from existing valid inputs have much higher chances to be valid, and thus to exercise functionality beyond input processing.

Next Steps¶

In the next chapter on greybox fuzzing, we further extend the concept of mutation-based testing with power schedules that allow spending more energy on seeds that exercise "unlikely" paths and seeds that are "closer" to a target location.

Exercises¶

Exercise 1: Fuzzing CGI decode with Mutations¶

Apply the above guided mutation-based fuzzing technique on cgi_decode() from the "Coverage" chapter. How many trials do you need until you cover all variations of +, % (valid and invalid), and regular characters?

from Coverage import cgi_decode

seed = ["Hello World"]
cgi_runner = FunctionCoverageRunner(cgi_decode)
m = MutationCoverageFuzzer(seed)
results = m.runs(cgi_runner, 10000)

m.population

cgi_runner.coverage()

all_coverage, cumulative_coverage = population_coverage(
    m.population, cgi_decode)

import matplotlib.pyplot as plt
plt.plot(cumulative_coverage)

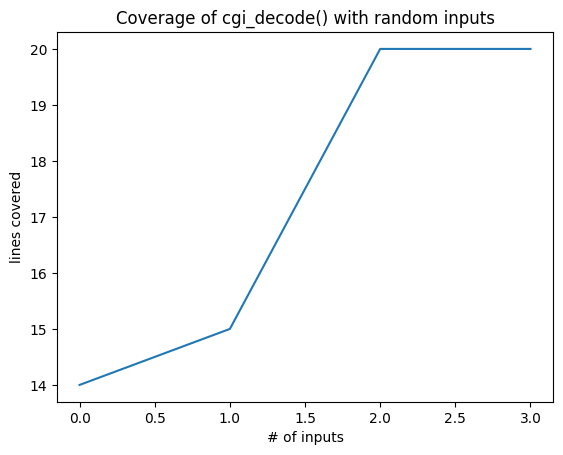

plt.title('Coverage of cgi_decode() with random inputs')
plt.xlabel('# of inputs')
plt.ylabel('lines covered');

After 10,000 runs, we have managed to synthesize a + character and a valid %xx form. We can still do better.

Exercise 2: Fuzzing bc with Mutations¶

Apply the above mutation-based fuzzing technique on bc, as in the chapter "Introduction to Fuzzing".

Part 1: Non-Guided Mutations¶

Start with non-guided mutations. How many of the inputs are valid?

Use the notebook to work on the exercises and see solutions.

Part 2: Guided Mutations¶

Continue with guided mutations. To this end, you will have to find a way to extract coverage from a C program such as bc. Proceed in these steps:

First, get GNU bc; download, say, bc-1.07.1.tar.gz and unpack it:

!curl -O mirrors.kernel.org/gnu/bc/bc-1.07.1.tar.gz

!tar xfz bc-1.07.1.tar.gz

Second, configure the package:

!cd bc-1.07.1; ./configure

Third, compile the package with special flags:

!cd bc-1.07.1 && make -k CFLAGS="--coverage"

The file bc/bc should now be executable...

!cd bc-1.07.1/bc; echo 2 + 2 | ./bc

...and you should be able to run the gcov program to retrieve coverage information.

!cd bc-1.07.1/bc; gcov main.c

As sketched in the "Coverage" chapter, the file bc-1.07.1/bc/main.c.gcov now holds the coverage information for bc.c. Each line is prefixed with the number of times it was executed. ##### means zero times; - means non-executable line.

Parse the GCOV file for bc and create a coverage set, as in FunctionCoverageRunner. Make this a ProgramCoverageRunner class that would be constructed with a list of source files (bc.c, main.c, load.c) to run gcov on.

When you're done, don't forget to clean up:

!rm -fr bc-1.07.1 bc-1.07.1.tar.gz

Exercise 3¶

In this blog post, the author of American Fuzzy Lop (AFL), a very popular mutation-based fuzzer discusses the efficiency of various mutation operators. Implement four of them and evaluate their efficiency as in the examples above.

Exercise 4¶

When adding a new element to the list of candidates, AFL does actually not compare the coverage, but adds an element if it exercises a new branch. Using branch coverage from the exercises of the "Coverage" chapter, implement this "branch" strategy and compare it against the "coverage" strategy, above.

Exercise 5¶

Design and implement a system that will gather a population of URLs from the Web. Can you achieve a higher coverage with these samples? What if you use them as initial population for further mutation?
