Code Coverage¶

In the previous chapter, we introduced basic fuzzing – that is, generating random inputs to test programs. How do we measure the effectiveness of these tests? One way would be to check the number (and seriousness) of bugs found; but if bugs are scarce, we need a proxy for the likelihood of a test to uncover a bug. In this chapter, we introduce the concept of code coverage, measuring which parts of a program are actually executed during a test run. Measuring such coverage is also crucial for test generators that attempt to cover as much code as possible.

Prerequisites

• You need some understanding of how a program is executed.
• You should have learned about basic fuzzing in the previous chapter.

A CGI Decoder¶

We start by introducing a simple Python function that decodes a CGI-encoded string. CGI encoding is used in URLs (i.e., Web addresses) to encode characters that would be invalid in a URL, such as blanks and certain punctuation:

• Blanks are replaced by '+'
• Other invalid characters are replaced by '%xx', where xx is the two-digit hexadecimal equivalent.

In CGI encoding, the string "Hello, world!" would thus become "Hello%2c+world%21" where 2c and 21 are the hexadecimal equivalents of ',' and '!', respectively.

The function cgi_decode() takes such an encoded string and decodes it back to its original form. Our implementation replicates the code from [Pezzè et al, 2008]. (It even includes its bugs – but we won't reveal them at this point.)

Here is an example of how cgi_decode() works:

If we want to systematically test cgi_decode(), how would we proceed?

The testing literature distinguishes two ways of deriving tests: Black-box testing and White-box testing.

Black-Box Testing¶

The idea of black-box testing is to derive tests from the specification. In the above case, we thus would have to test cgi_decode() by the features specified and documented, including

• testing for correct replacement of '+';
• testing for correct replacement of "%xx";
• testing for non-replacement of other characters; and
• testing for recognition of illegal inputs.

Here are four assertions (tests) that cover these four features. We can see that they all pass:

The advantage of black-box testing is that it finds errors in the specified behavior. It is independent of a given implementation, and thus allows creating tests even before implementation. The downside is that implemented behavior typically covers more ground than specified behavior, and thus tests based on specification alone typically do not cover all implementation details.

White-Box Testing¶

In contrast to black-box testing, white-box testing derives tests from the implementation, notably the internal structure. White-Box testing is closely tied to the concept of covering structural features of the code. If a statement in the code is not executed during testing, for instance, this means that an error in this statement cannot be triggered either. White-Box testing thus introduces a number of coverage criteria that have to be fulfilled before the test can be said to be sufficient. The most frequently used coverage criteria are

• Statement coverage – each statement in the code must be executed by at least one test input.
• Branch coverage – each branch in the code must be taken by at least one test input. (This translates to each if and while decision once being true, and once being false.)

Besides these, there are far more coverage criteria, including sequences of branches taken, loop iterations taken (zero, one, many), data flows between variable definitions and usages, and many more; [Pezzè et al, 2008] has a great overview.

Let us consider cgi_decode(), above, and reason what we have to do such that each statement of the code is executed at least once. We'd have to cover

• The block following if c == '+'
• The two blocks following if c == '%' (one for valid input, one for invalid)
• The final else case for all other characters.

This results in the same conditions as with black-box testing, above; again, the assertions above indeed would cover every statement in the code. Such a correspondence is actually pretty common, since programmers tend to implement different behaviors in different code locations; and thus, covering these locations will lead to test cases that cover the different (specified) behaviors.

The advantage of white-box testing is that it finds errors in implemented behavior. It can be conducted even in cases where the specification does not provide sufficient details; actually, it helps in identifying (and thus specifying) corner cases in the specification. The downside is that it may miss non-implemented behavior: If some specified functionality is missing, white-box testing will not find it.

Tracing Executions¶

One nice feature of white-box testing is that one can actually automatically assess whether some program feature was covered. To this end, one instruments the execution of the program such that during execution, a special functionality keeps track of which code was executed. After testing, this information can be passed to the programmer, who can then focus on writing tests that cover the yet uncovered code.

In most programming languages, it is rather difficult to set up programs such that one can trace their execution. Not so in Python. The function sys.settrace(f) allows defining a tracing function f() that is called for each and every line executed. Even better, it gets access to the current function and its name, current variable contents, and more. It is thus an ideal tool for dynamic analysis – that is, the analysis of what actually happens during an execution.

To illustrate how this works, let us again look into a specific execution of cgi_decode().

To track how the execution proceeds through cgi_decode(), we make use of sys.settrace(). First, we define the tracing function that will be called for each line. It has three parameters:

• The frame parameter gets you the current frame, allowing access to the current location and variables:
  • frame.f_code is the currently executed code with frame.f_code.co_name being the function name;
  • frame.f_lineno holds the current line number; and
  • frame.f_locals holds the current local variables and arguments.
• The event parameter is a string with values including "line" (a new line has been reached) or "call" (a function is being called).
• The arg parameter is an additional argument for some events; for "return" events, for instance, arg holds the value being returned.

We use the tracing function for simply reporting the current line executed, which we access through the frame argument.

We can switch tracing on and off with sys.settrace():

When we compute cgi_decode("a+b"), we can now see how the execution progresses through cgi_decode(). After the initialization of hex_values, t, and i, we see that the while loop is taken three times – one for every character in the input.

Which lines are these, actually? To this end, we get the source code of cgi_decode_code and encode it into an array cgi_decode_lines, which we will then annotate with coverage information. First, let us get the source code of cgi_encode:

cgi_decode_code is a string holding the source code. We can print it out with Python syntax highlighting:

Using splitlines(), we split the code into an array of lines, indexed by line number.

cgi_decode_lines[L] is line L of the source code.

We see that the first line (9) executed is actually the initialization of hex_values...

... followed by the initialization of t:

To see which lines actually have been covered at least once, we can convert coverage into a set:

Let us print out the full code, annotating lines not covered with #. The idea of such an annotation is to direct developer's attention to the non-covered lines.

We see that a number of lines (notably comments) have not been executed (marked with #), simply because they are not executable. However, we also see that the lines under elif c == '%' have not been executed yet. If "a+b" were our only test case so far, this missing coverage would now encourage us to create another test case that actually covers these #-marked lines.

A Coverage Class¶

In this book, we will make use of coverage again and again – to measure the effectiveness of different test generation techniques, but also to guide test generation towards code coverage. Our previous implementation with a global coverage variable is a bit cumbersome for that. We therefore implement some functionality that will help us measure coverage easily.

The key idea of getting coverage is to make use of the Python with statement. The general form

with OBJECT [as VARIABLE]:
    BODY

executes BODY with OBJECT being defined (and stored in VARIABLE). The interesting thing is that at the beginning and end of BODY, the special methods OBJECT.__enter__() and OBJECT.__exit__() are automatically invoked; even if BODY raises an exception. This allows us to define a Coverage object where Coverage.__enter__() automatically turns on tracing and Coverage.__exit__() automatically turns off tracing again. After tracing, we can make use of special methods to access the coverage. This is what this looks like during usage:

with Coverage() as cov:
    function_to_be_traced()
c = cov.coverage()

Here, tracing is automatically turned on during function_to_be_traced() and turned off again after the with block; afterwards, we can access the set of lines executed.

Here's the full implementation with all its bells and whistles. You don't have to get everything; it suffices that you know how to use it:

Let us put this to use:

As you can see, the Coverage() class not only keeps track of lines executed, but also of function names. This is useful if you have a program that spans multiple files.

For interactive use, we can simply print the coverage object, and obtain a listing of the code, again with non-covered lines marked as #.

Comparing Coverage¶

Since we represent coverage as a set of executed lines, we can also apply set operations on these. For instance, we can find out which lines are covered by individual test cases, but not others:

This is the single line in the code that is executed only in the 'a+b' input.

We can also compare sets to find out which lines still need to be covered. Let us define cov_max as the maximum coverage we can achieve. (Here, we do this by executing the "good" test cases we already have. In practice, one would statically analyze code structure, which we introduce in the chapter on symbolic testing.)

Then, we can easily see which lines are not yet covered by a test case:

Again, these would be the lines handling "%xx", which we have not yet had in the input.

Coverage of Basic Fuzzing¶

We can now use our coverage tracing to assess the effectiveness of testing methods – in particular, of course, test generation methods. Our challenge is to achieve maximum coverage in cgi_decode() just with random inputs. In principle, we should eventually get there, as eventually, we will have produced every possible string in the universe – but exactly how long is this? To this end, let us run just one fuzzing iteration on cgi_decode():

Here's the invocation and the coverage we achieve. We wrap cgi_decode() in a try...except block such that we can ignore ValueError exceptions raised by illegal %xx formats.

Is this already the maximum coverage? Apparently, there are still lines missing:

Let us try again, increasing coverage over 100 random inputs. We use an array cumulative_coverage to store the coverage achieved over time; cumulative_coverage[0] is the total number of lines covered after input 1, cumulative_coverage[1] is the number of lines covered after inputs 1–2, and so on.

Let us create a hundred inputs to determine how coverage increases:

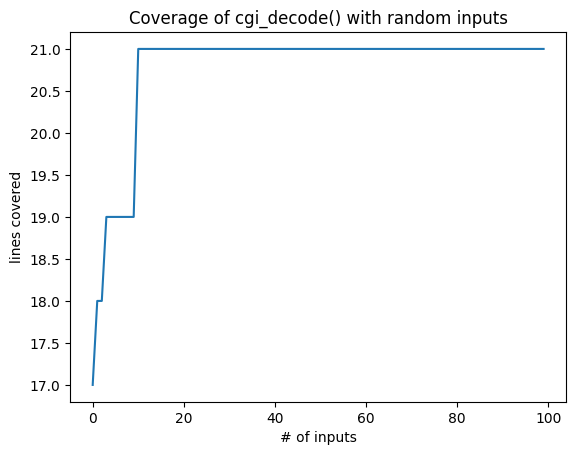

Here's how the coverage increases with each input:

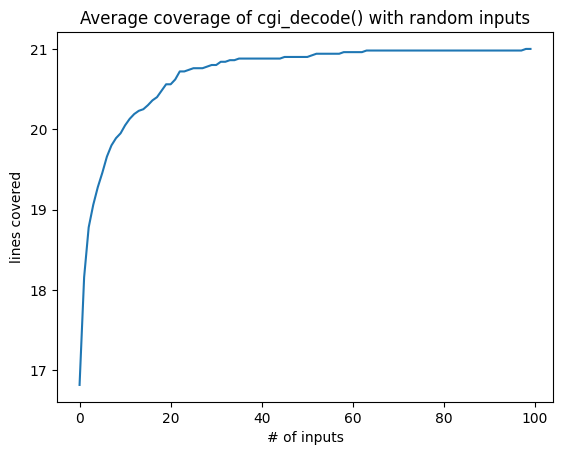

This is just one run, of course; so let's repeat this a number of times and plot the averages.

We see that on average, we get full coverage after 40–60 fuzzing inputs.

Getting Coverage from External Programs¶

Of course, not all the world is programming in Python. The good news is that the problem of obtaining coverage is ubiquitous, and almost every programming language has some facility to measure coverage. Just as an example, let us therefore demonstrate how to obtain coverage for a C program.

Our C program (again) implements cgi_decode; this time as a program to be executed from the command line:

$ ./cgi_decode 'Hello+World'
Hello World

Here comes the C code, first as a Python string. We start with the usual C includes:

Here comes the initialization of hex_values:

Here's the actual implementation of cgi_decode(), using pointers for input source (s) and output target (t):

Finally, here's a driver which takes the first argument and invokes cgi_decode with it:

Let us create the C source code: (Note that the following commands will overwrite the file cgi_decode.c, if it already exists in the current working directory. Be aware of this, if you downloaded the notebooks and are working locally.)

And here we have the C code with its syntax highlighted:

We can now compile the C code into an executable. The --coverage option instructs the C compiler to instrument the code such that at runtime, coverage information will be collected. (The exact options vary from compiler to compiler.)

When we now execute the program, coverage information will automatically be collected and stored in auxiliary files:

The coverage information is collected by the gcov program. For every source file given, it produces a new .gcov file with coverage information. This is either stored in cgi_decode... or in cgi_decode-cgi_decode... files.

In the .gcov file, each line is prefixed with the number of times it was called (- stands for a non-executable line, ##### stands for zero) as well as the line number. We can take a look at cgi_decode(), for instance, and see that the only code not executed yet is the return -1 for an illegal input.

Let us read in this file to obtain a coverage set:

With this set, we can now do the same coverage computations as with our Python programs.

Finding Errors with Basic Fuzzing¶

Given sufficient time, we can indeed cover each and every line within cgi_decode(), whatever the programming language would be. This does not mean that they would be error-free, though. Since we do not check the result of cgi_decode(), the function could return any value without us checking or noticing. To catch such errors, we would have to set up a results checker (commonly called an oracle) that would verify test results. In our case, we could compare the C and Python implementations of cgi_decode() and see whether both produce the same results.

Where fuzzing is great at, though, is in finding internal errors that can be detected even without checking the result. Actually, if one runs our fuzzer() on cgi_decode(), one quickly finds such an error, as the following code shows:

So, it is possible to cause cgi_decode() to crash. Why is that? Let's take a look at its input:

The problem here is at the end of the string. After a '%' character, our implementation will always attempt to access two more (hexadecimal) characters, but if these are not there, we will get an IndexError exception.

This problem is also present in our C variant, which inherits it from the original implementation [Pezzè et al, 2008]:

int digit_high = *++s;
int digit_low = *++s;

Here, s is a pointer to the character to be read; ++ increments it by one character. In the C implementation, the problem is actually much worse. If the '%' character is at the end of the string, the above code will first read a terminating character ('\0' in C strings) and then the following character, which may be any memory content after the string, and which thus may cause the program to fail uncontrollably. The somewhat good news is that '\0' is not a valid hexadecimal character, and thus, the C version will "only" read one character beyond the end of the string.

Interestingly enough, none of the manual tests we had designed earlier would trigger this bug. Actually, neither statement nor branch coverage, nor any of the coverage criteria commonly discussed in literature would find it. However, a simple fuzzing run can identify the error with a few runs – if appropriate run-time checks are in place that find such overflows. This definitely calls for more fuzzing!

Lessons Learned¶

• Coverage metrics are a simple and fully automated means to approximate how much functionality of a program is actually executed during a test run.
• A number of coverage metrics exist, the most important ones being statement coverage and branch coverage.
• In Python, it is very easy to access the program state during execution, including the currently executed code.

At the end of the day, let's clean up: (Note that the following commands will delete all files in the current working directory that fit the pattern cgi_decode.*. Be aware of this, if you downloaded the notebooks and are working locally.)

Next Steps¶

Coverage is not only a tool to measure test effectiveness, but also a great tool to guide test generation towards specific goals – in particular uncovered code. We use coverage to

• guide mutations of existing inputs towards better coverage in the chapter on mutation fuzzing

Background¶

Coverage is a central concept in systematic software testing. For discussions, see the books in the Introduction to Testing.

Exercises¶

Exercise 1: Fixing cgi_decode()¶

Create an appropriate test to reproduce the IndexError discussed above. Fix cgi_decode() to prevent the bug. Show that your test (and additional fuzzer() runs) no longer expose the bug. Do the same for the C variant.

Exercise 2: Branch Coverage¶

Besides statement coverage, branch coverage is one of the most frequently used criteria to determine the quality of a test. In a nutshell, branch coverage measures how many control decisions are made in code. In the statement

if CONDITION:
    do_a()
else:
    do_b()

for instance, both the cases where CONDITION is true (branching to do_a()) and where CONDITION is false (branching to do_b()) have to be covered. This holds for all control statements with a condition (if, while, etc.).

How is branch coverage different from statement coverage? In the above example, there is actually no difference. In this one, though, there is:

if CONDITION:
    do_a()
something_else()

Using statement coverage, a single test case where CONDITION is true suffices to cover the call to do_a(). Using branch coverage, however, we would also have to create a test case where do_a() is not invoked.

Using our Coverage infrastructure, we can simulate branch coverage by considering pairs of subsequent lines executed. The trace() method gives us the list of lines executed one after the other:

Part 1: Compute branch coverage¶

Define a function branch_coverage() that takes a trace and returns the set of pairs of subsequent lines in a trace – in the above example, this would be

set(
(('cgi_decode', 9), ('cgi_decode', 10)),
(('cgi_decode', 10), ('cgi_decode', 11)),
# more_pairs
)

Bonus for advanced Python programmers: Define BranchCoverage as a subclass of Coverage and make branch_coverage() as above a coverage() method of BranchCoverage.

Part 2: Comparing statement coverage and branch coverage¶

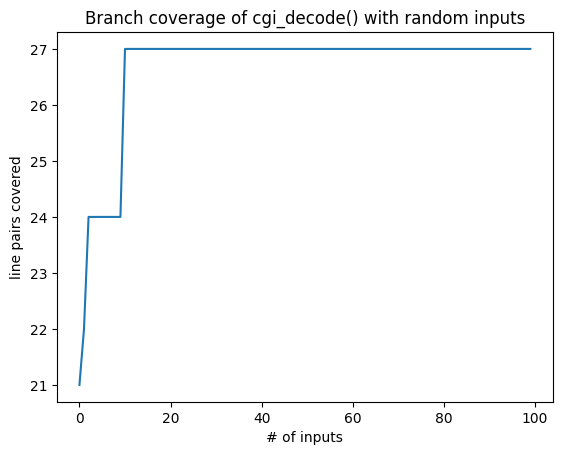

Use branch_coverage() to repeat the experiments in this chapter with branch coverage rather than statement coverage. Do the manually written test cases cover all branches?

Part 3: Average coverage¶

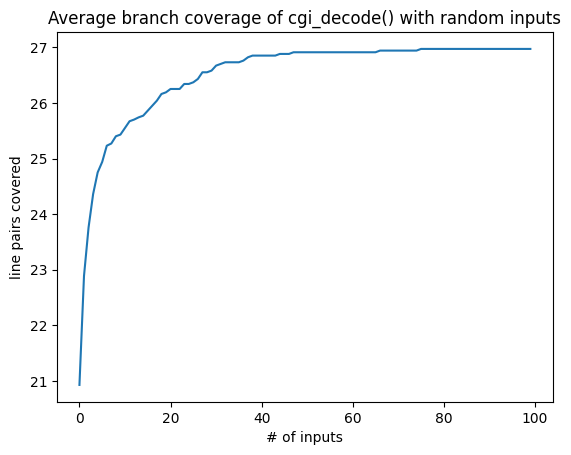

Again, repeat the above experiments with branch coverage. Does fuzzer() cover all branches, and if so, how many tests does it take on average?
